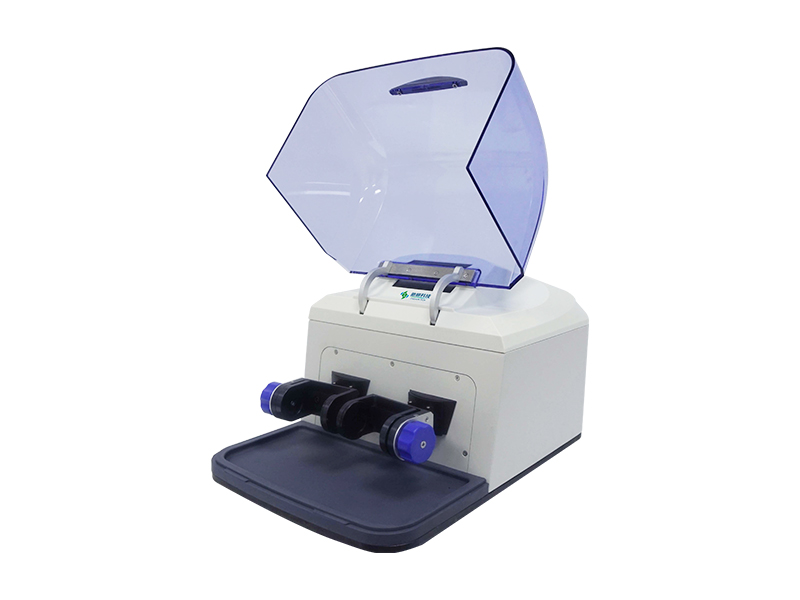

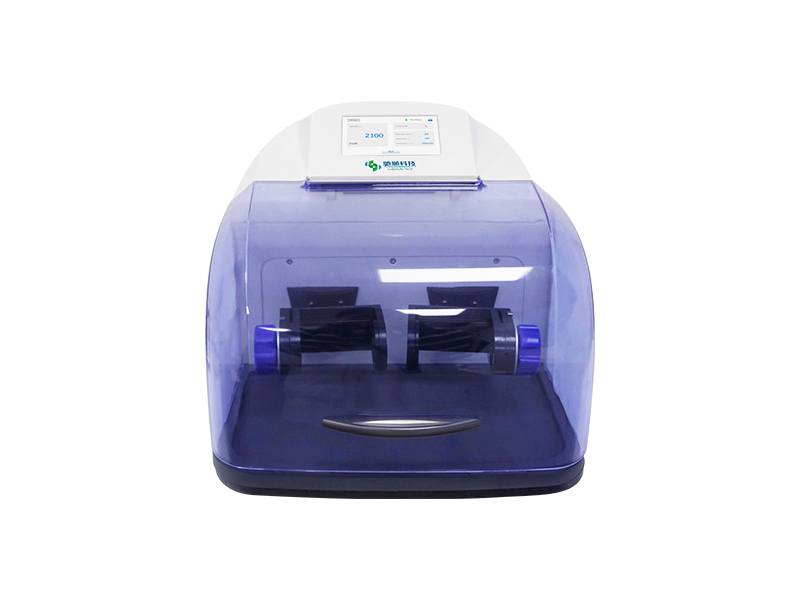

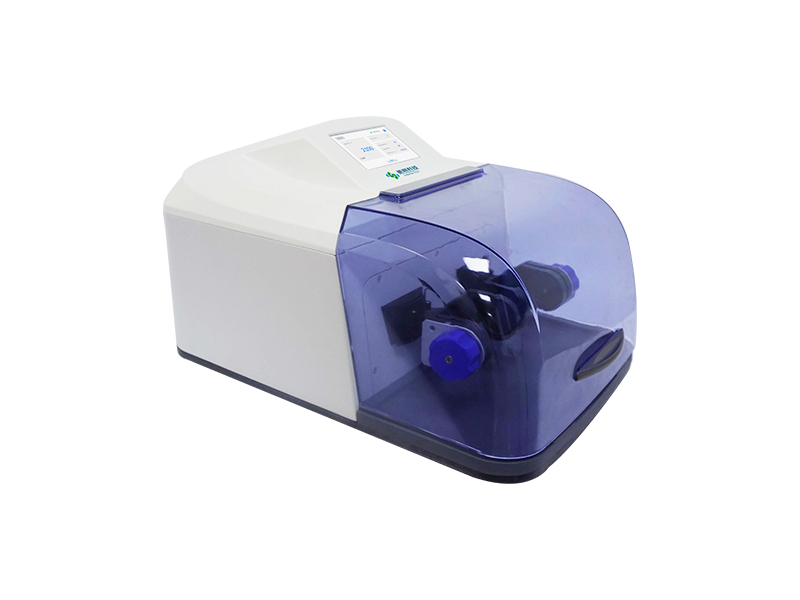

MAX-mill High performance cryogenic mixer mill is a high-energy and multifunctional desktop vibration ball mill. MAX mill can mix and homogenize powders or suspensions at up to 2100 rpm in a short period of time, with fast speed and easy operation, generating enough energy to grind particles to the nanometer range; When using a metal grinding bowl, it can be manually pre cooled in liquid nitrogen to minimize the heating effect. The MAX-mill High performance cryogenic mixer mill has high-performance power and is suitable for long-term grinding processes, making it highly attractive for scientific research and mechanochemistry. The product is widely used in various experimental pre-treatment fields such as mechanochemical synthesis, biology, chemistry, pharmacology, minerals, medicine, etc.

Function and principle

The grinding tank of the MAX mill high-energy frozen mixing ball mill performs radial oscillation in a horizontal position, and the inertia of the grinding ball causes it to impact the sample material at the round end of the grinding tank with high energy and crush it. In addition, the movement of the grinding tank is combined with the movement of the ball, resulting in strong mixing of the sample. By using several smaller diameter balls, the degree of mixing can be further improved, and the huge frictional impact effect between the grinding balls ensures effective cell fragmentation.

Product Features

Enhanced motor, imported bearings, stepless speed regulation;

Touch screen control, custom program storage, cover opening protection;

Efficient grinding, maintenance free, and smooth operation;

Transparent front cover, leakage protection, and pollution isolation;

Different adapters can be replaced, and various adapters are available for selection;

Performance and Design

Achieve powerful grinding, crushing, and homogenization effects through impact and friction at 2100rpm;

Equipped with 2 grinding workstations, capable of grinding up to 20 samples at a time;

An operational process that can store multiple segments of programs;

The touch screen is easy to operate, simple and comfortable;

Unmatched versatility

Three grinding modes: dry grinding, wet grinding, and frozen grinding;

Before granulation, mix the powder sample and adhesive in a container (such as XRF analysis);

Suitable for applied research, such as mechanochemistry or biological cell tissue fragmentation;

Extraction of pesticide and herbal components;

Biological applications and cell fragmentation solutions

Freeze mixed ball mills are often used to homogenize biological samples, and grinding with ball mills is a established method for cell fragmentation of yeast, microalgae, or bacterial samples. During this process, the sample will only moderately heat up, and the warming effect can be minimized through pre cooling. The MAX100 high-energy hybrid ball mill can effectively crush up to 96 * 2ml of cell suspensions to extract DNA/RNA and proteins. To accurately diagnose infection, complete bacteria can be isolated from the tissue of a 10 * 5ml test tube using an adapter.

Application of Mechanochemical Synthesis

Mechanochemical methods can enable rapid reactions of substances in solvent-free environments. Some chemical reactions require friction from planetary ball mills, while other types of reactions require energy input through impact. This is where the MAX mill high-energy frozen mixed ball mill works. The sample size available for research applications is usually very low, which makes small grinding jars such as MAX mill with a volume of less than 50 milliliters advantageous. Due to the often long reaction time, setting the working time to a few hours is another important aspect. Compared with traditional planetary ball mills, hybrid mills have unique advantages in mechanochemical applications, allowing for in situ RAMAN spectroscopic analysis.

technical parameter

Application fields: agriculture, chemistry, synthetic materials, medicine, geometallurgy, engineering electronics, building materials, environmental resources, glass, ceramics, bio food

Sample characteristics: hard, medium hard, soft, brittle, elastic, fibrous

Crushing principle: impact force, friction force

Speed setting: 180rpm to 2100rpm

Typical crushing time: 30s -2min

Grinding platform: 2

Feed size: set according to adapter specifications

Discharge particle size:~5 μ m

Grinding ball diameter: 0.1-30mm

Grinding method: dry grinding, wet grinding, frozen grinding

Adapter material: POM/nylon/aluminum alloy

Grinding tube material: PTFE/stainless steel/zirconia/agate

Rated power: 500W

Electrical description: AC200~240V 50/60Hz

External dimensions: W 530 * D 350 * H 311mm

Sample capacity: 96 * 2ml/64 * 2ml/48 * 2ml/16 * 2ml/10 * 5ml/2 * 15ml (customized grinding tube)/2 * 25ml (customized grinding tube)/2 * 50ml (customized grinding tube)/8 * 50ml (standard grinding tube)
